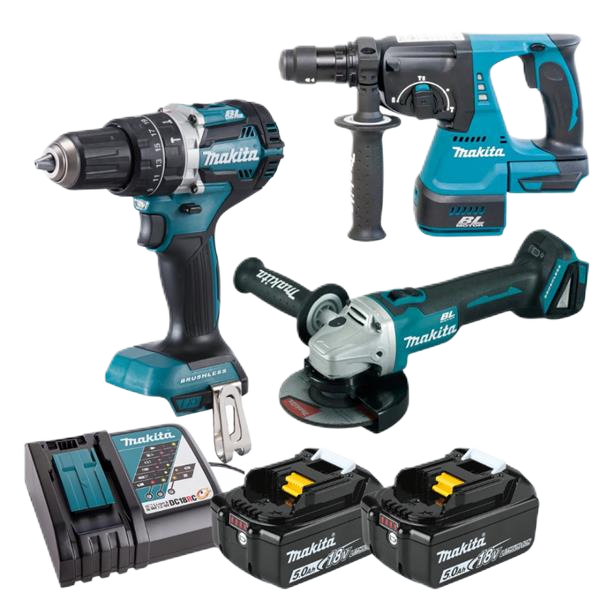

18V 3Pc Brushless Kit
DLX3196JX1
- We Also Have A Warehouse In Rathcoole Dublin If You Need Your Parts TODAY not TOMORROW! Call us now 086 6073166 | 087 1818381
Technical
- DHP484 Specification
- Voltage: 18v
- Soft Application Max Torque (Nm): 30
- Hard Application Max Torque (Nm): 54
- Torque Settings: 21 + Drill
- Brake Type: Electric
- No. of Gears: 2
- LED Job Light: Yes / Pre-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Rotation: Forward / Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM) High: 0-2000
- No Load Speed (RPM) Med: N/A
- No Load Speed (RPM) Low: 0-500
- Chuck Type: 3-Jaw / Single Sleeve Keyless
- Chuck Capacity (mm): 13
- Screw Capacity: Machine Screw (mm): 6
- Screw Capacity: Wood Screw (mm): 10 x 90
- Drill Capacity: Concrete (mm): 13
- Drill Capacity: Metal (mm): 13
- Drill Capacity: Wood (mm): 38
- Impact Rate (BPM) High: 0-30000
- Impact Rate (BPM) Med: N/A
- Impact Rate (BPM) Low: 0-7500
- Overall Length (mm): 182
- DHR243 Specification
- Voltage - 18V
- Capacity in Concrete - 24mm
- Capacity in Steel - 13mm
- Capacity in Wood - 27mm
- Quick Change Chuck
- Impact energy - 2.0 J
- Blows per minute - 0 - 4700 bpm
- DGA504 Specification
- Battery Voltage: 18 V
- Battery type: Li-ion
- Charging time: 45 min
- Grinding wheel diameter: 115/125 max. mm
- Shaft locking: yes
- No load speed: 8,500 min-1
- Vibration ah: 8,5 m/s
- Vibration K: 1,5 m/s
- Sound pressure level: 75 dB(A)
- Weight (EPTA): 2.37 kg
- Dim. WxDxH: 317x129x126 mm
- Connection/take-up: M14
