Brigade Essential Camera Monitor System For Rigid Vehicles – VBV-670-000 (5774)

Brigade ‘Essential Range’ single camera monitor system for rigid vehicles. Includes 7″ LCD monitor, single camera and 20m cable. Comes with 1 Year Brigade Warranty.

Important: this kit has 2 camera inputs, with 1 trigger.

Features

• Cost-effective solution to prevent reversing accidents
• Simple ‘plug & play’ installation
• 2 inputs, with 1 Trigger
• 18 Infra-red LEDs for optimum performance at night
• 83°(H), 64°(V), 110°(D) viewing angle
• Camera rated to IP67
• 7 On Screen Languages
• 1 Year warranty

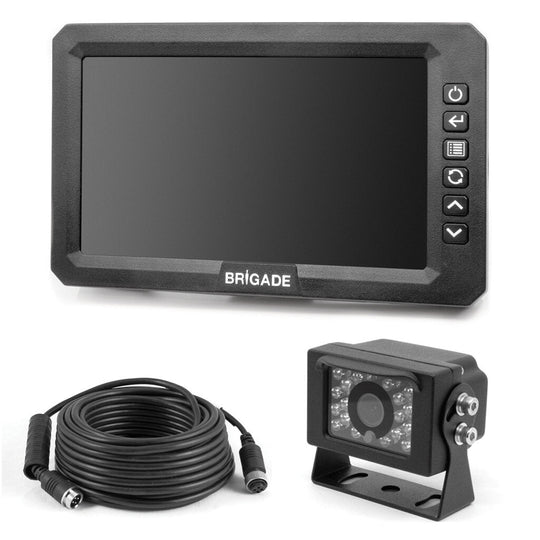

This kit includes

• VBV-670M – 7″ LCD CMS Essential Monitor (with bracket and sunscreen)
• VBV-630C – Essential Camera, IP67 (PAL)
• VBV-L4020 – 20m essential camera extension cable
• 1 Year system warranty.

Monitor

• System: PAL
• Display Size: 7″
• Resolution: 800×480 RGB
• Power: 12/24Vdc
• Consumption: 4.2W @ 12Vdc
• Inputs: 2 x Camera
• Operating Temperature: -30 to +70 degrees C
• Dimensions: 194 x 118 x 24.5mm
• Weight: 625g

Camera

• Video Output: PAL
• Image Size: 1/3″
• Horizontal Resolution: 425 TV Lines
• Required Illumination: 0.1 LUX (IR LED Integrated)
• Power Supply: 12Vdc
• Consumption: PAL – IR off: 40mA / IR on: 120mA
• Viewing Angle: 83(H) x 64(V) x 110(D) degrees
• Operating Temperature: -30 to +70 degrees C
• Dimensions: 76 x 59 x 54.5mm
• Weight: 208g
